Patch Cords

$9.60 CAD

Promotion Épuisé

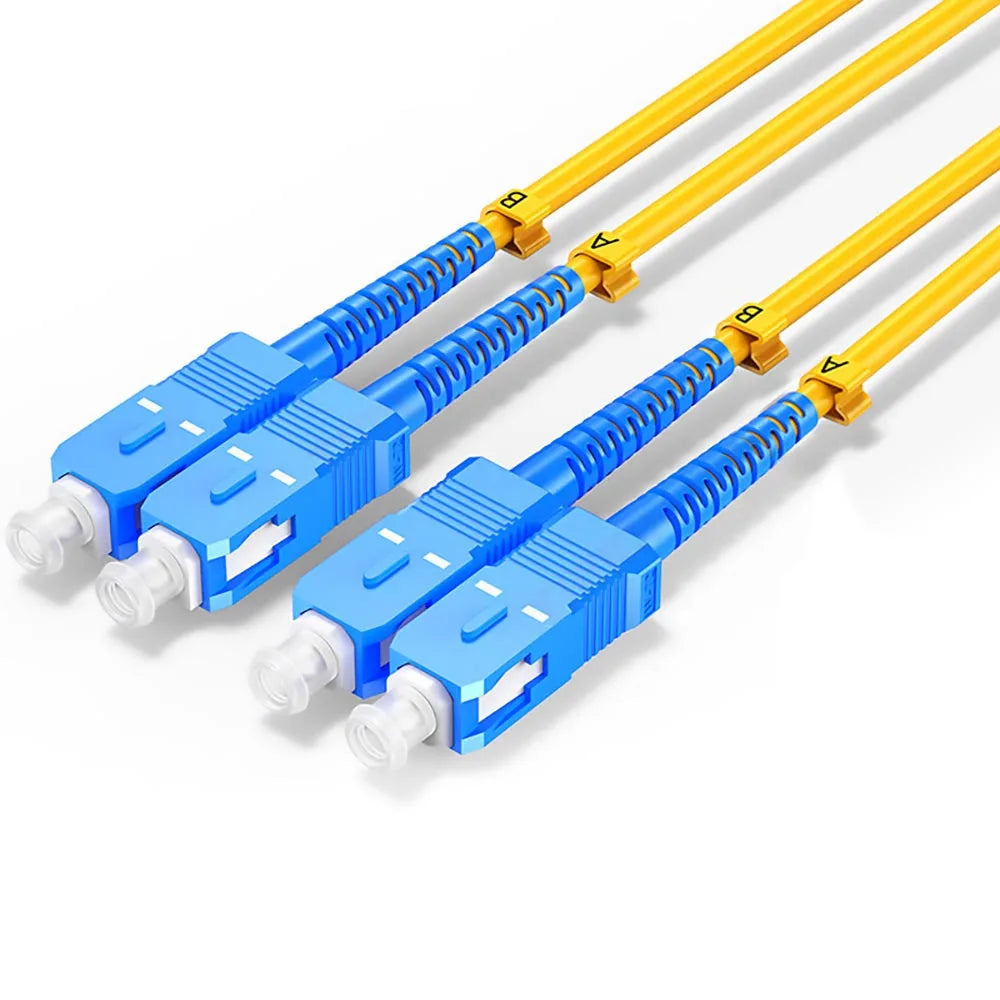

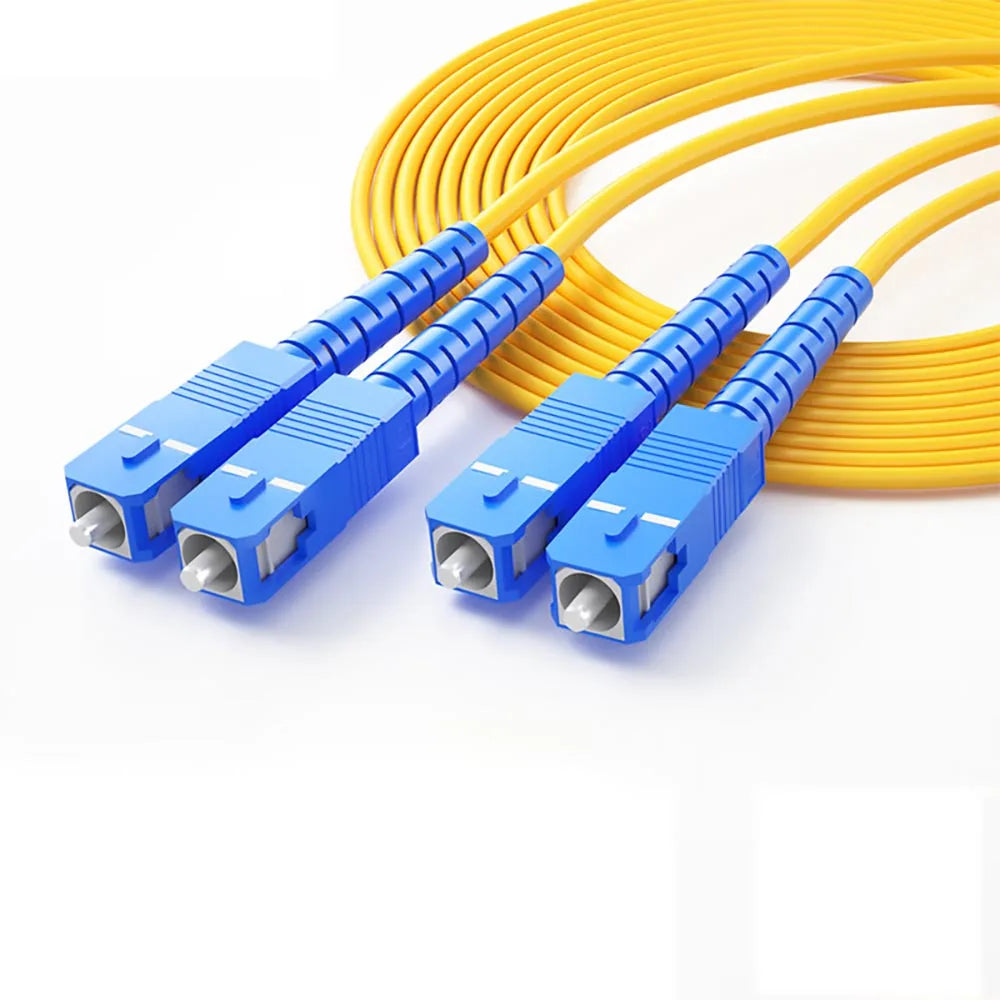

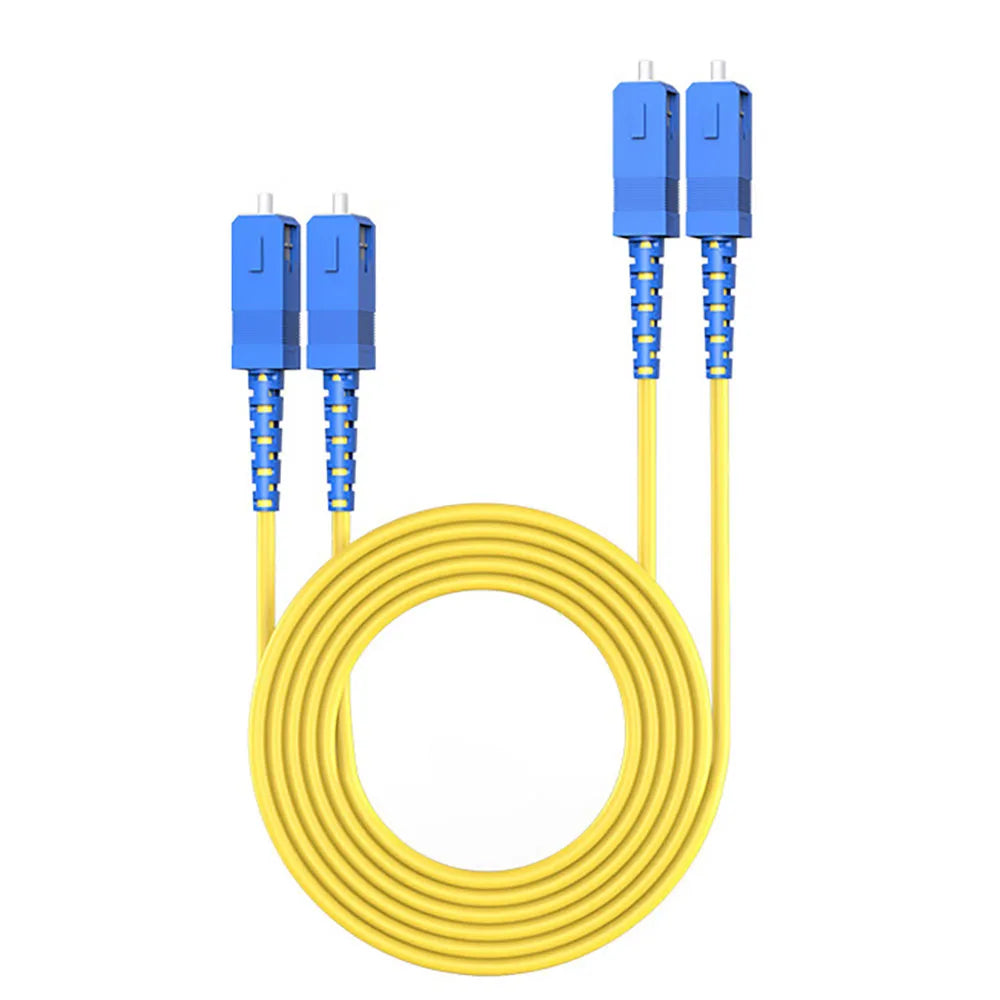

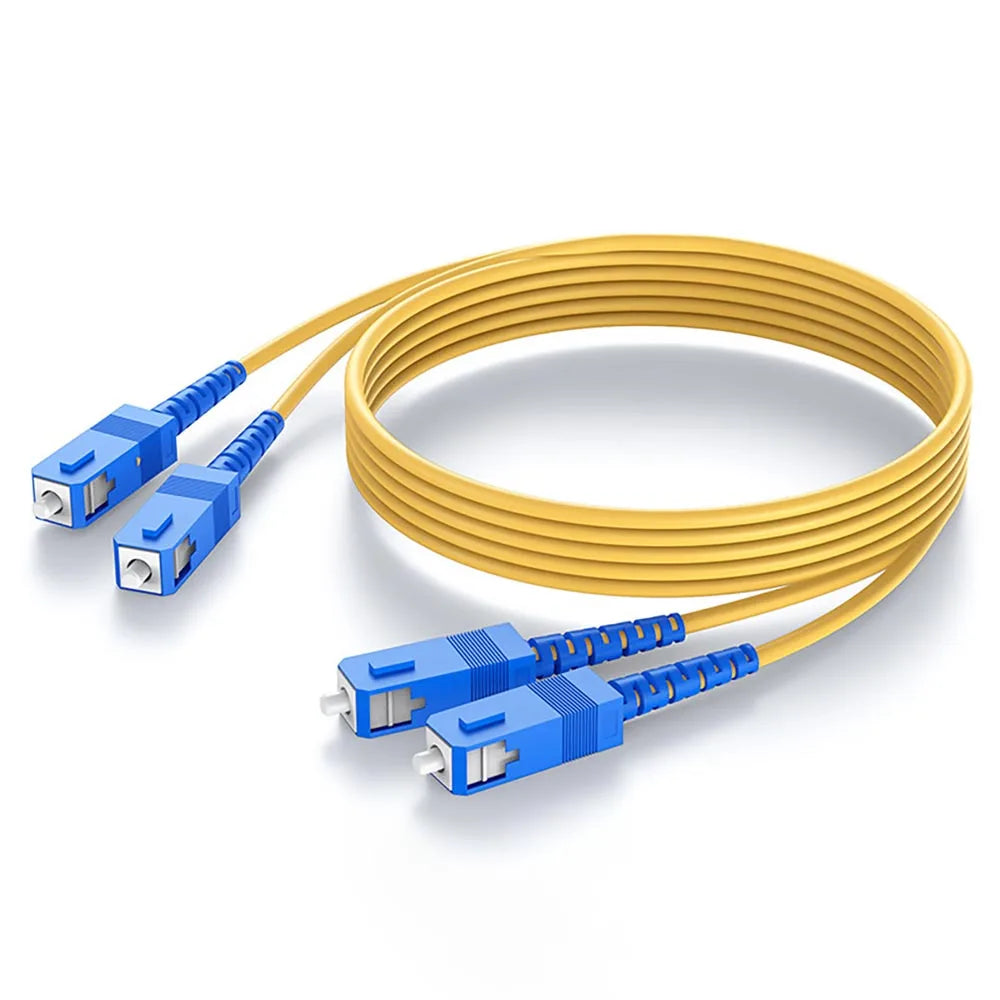

SC to SC duplex single-mode fiber patch cords with 9/125 μm OS2 fiber, capable of stable transmission over long distances.
Can be configured in SC/UPC or SC/APC duplex mode to meet different network requirements.
Lengths can be customized: 1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft), 7 m (23 ft), 10 m (33 ft), 15 m (49 ft) or made to measure.
Configurable with many types of connectors: LC-LC, LC-SC, LC-ST, SC-SC, SC-ST, ST-ST. Fully customizable for your application.
Patch cords are constructed and tested according to TIA/EIA 492AAAA and IEC60793-2-10 A1b standards.
Low insertion loss (≤ 0.30 dB) and high return loss (≥ 55 dB) for quality performance.

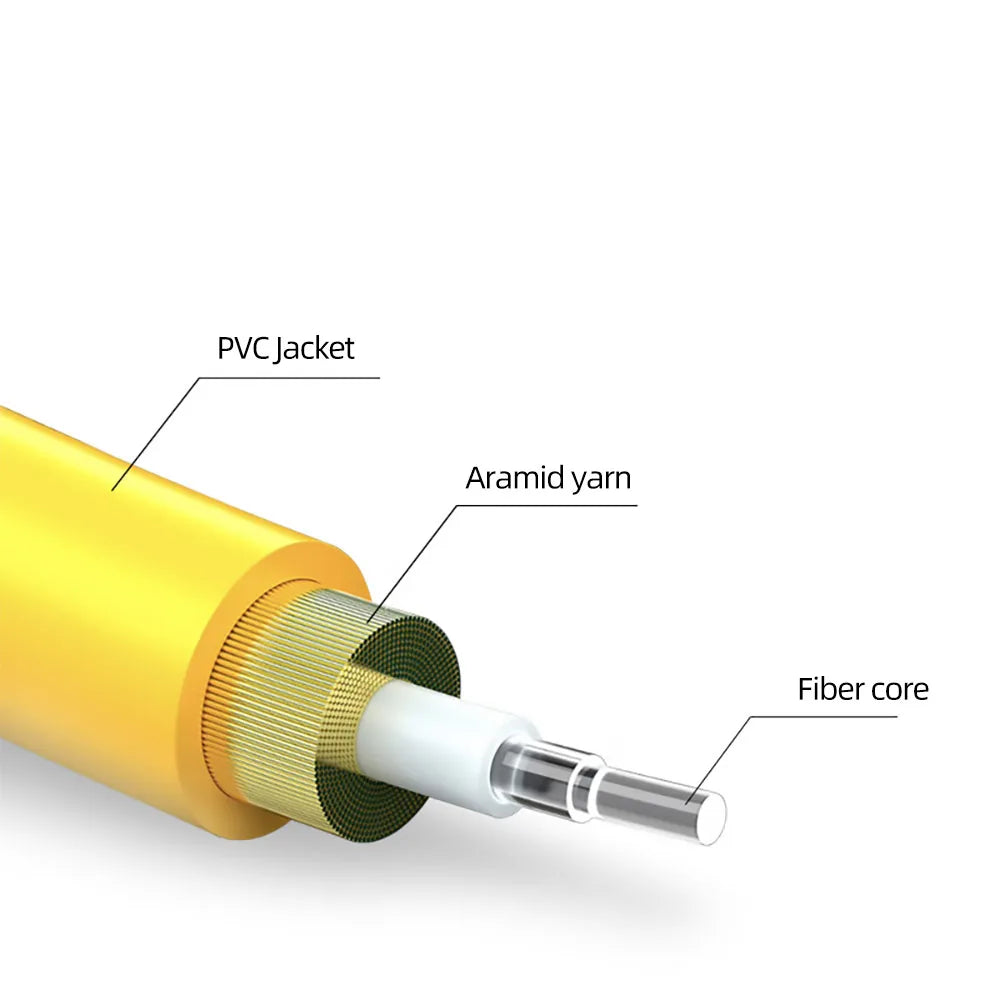

The OFNR fire-resistant PVC sheath, suitable for risers, can be used in vertical installations and between floors.
The bend-insensitive G.657.A1 fiber can be easily routed with a minimum bend radius of 10 mm, allowing easy routing in confined spaces.
