Optical Power Meters

$1,999.00 CAD

Promotion Épuisé

High power 33 kHz signal: A 5 W output power supports a frequency range of 512 Hz to 33 kHz and is suitable for the accurate tracing of all cables up to 25 km in optimal soil conditions and for cables buried at a depth of 1.5 to 2.5 m.
Extreme accuracy (taking into account a directional error of ±2.5%): Precise measurement of depth, location of fault points and measurement of insulation resistance up to 0.5 MΩ, all with a planar positioning error of less than 5 cm.
Battery life of more than 12 hours: High output capacity rechargeable lithium batteries (Tx 14.8 V / 3500 mAh; Rx 7.4 V / 3500 mAh) allow for a full day of operation in the field.

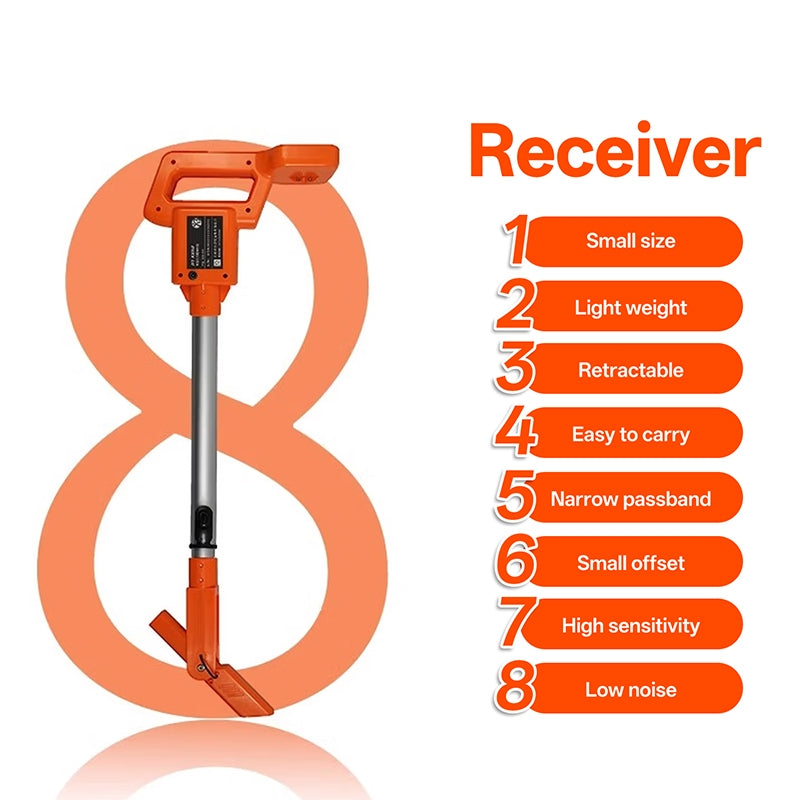

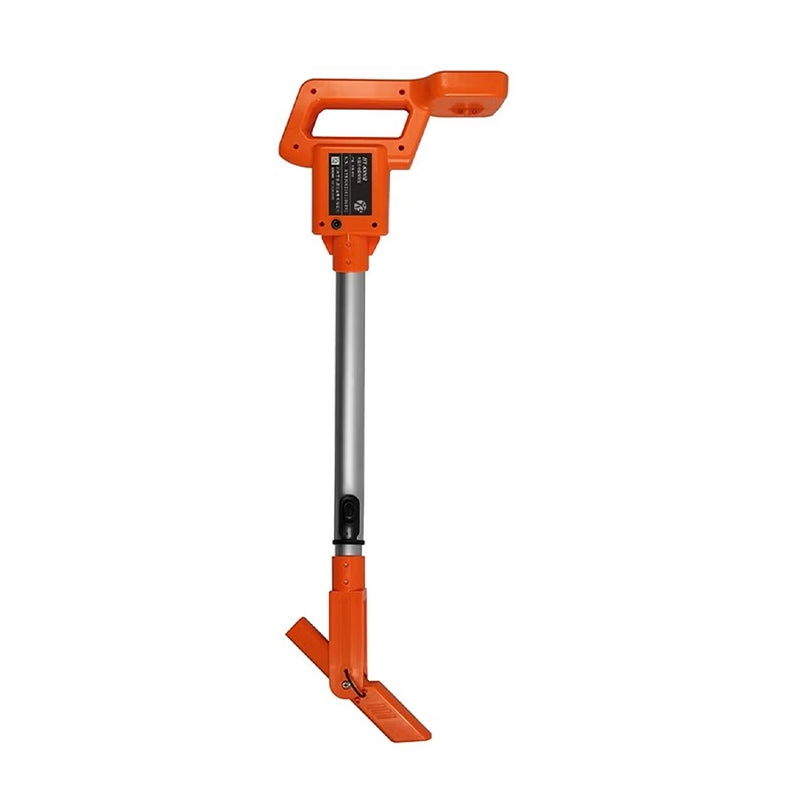

Portable telescopic construction: The retractable receiver extends from 260 mm to 630 mm for optimal operator comfort while using a small and easy-to-store transmitter.
Multi-impedance output: Selectable modes (8Ω, 50Ω, 600Ω) allow for efficient matching with metal pipes and tracer wires.
Low noise multiband receiver: Optimized receiving logic for 512 Hz and 33 kHz with 30 gain levels and 5 volume adjustment levels to eliminate interference.
Ultra-rugged construction: The waterproof keyboard and fully sealed housing allow operation in harsh and extreme outdoor environments.
Easy one-button operation: Quick application of optical and metallic cable tracing and fault location over a distance of 15 km.
