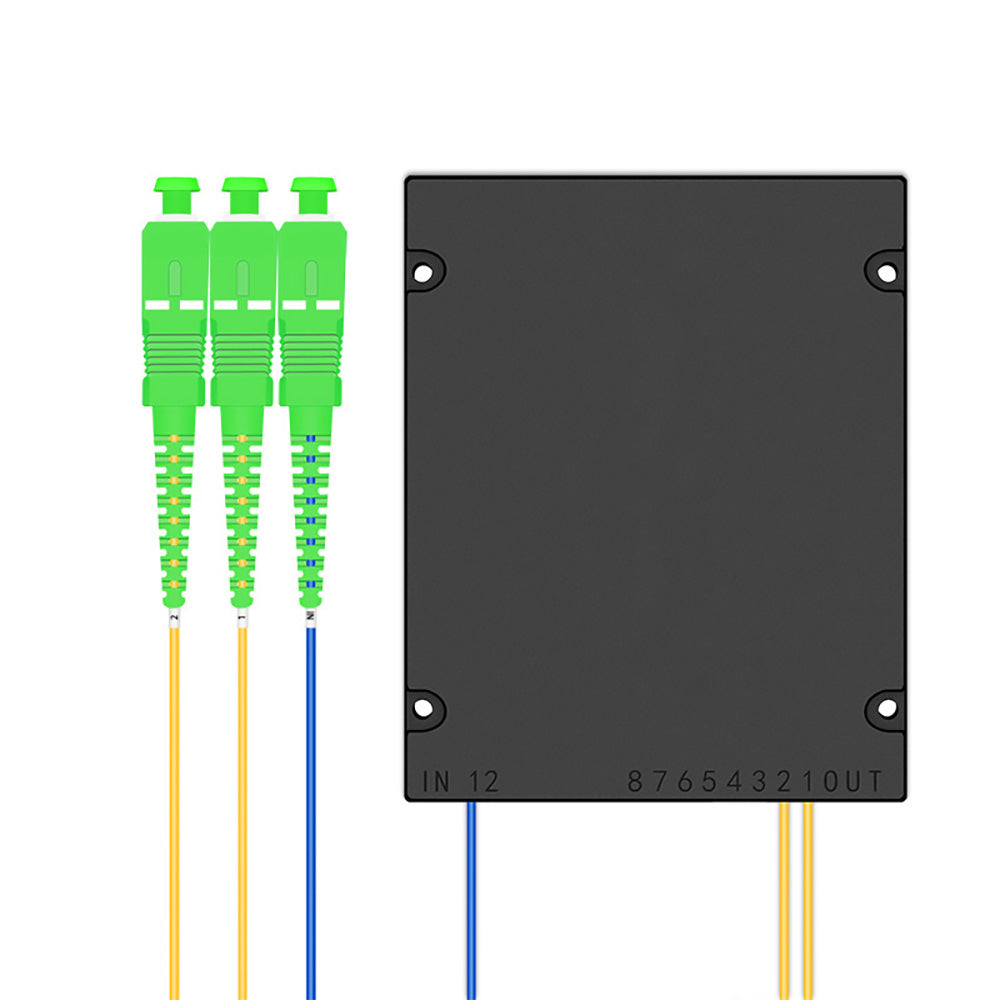

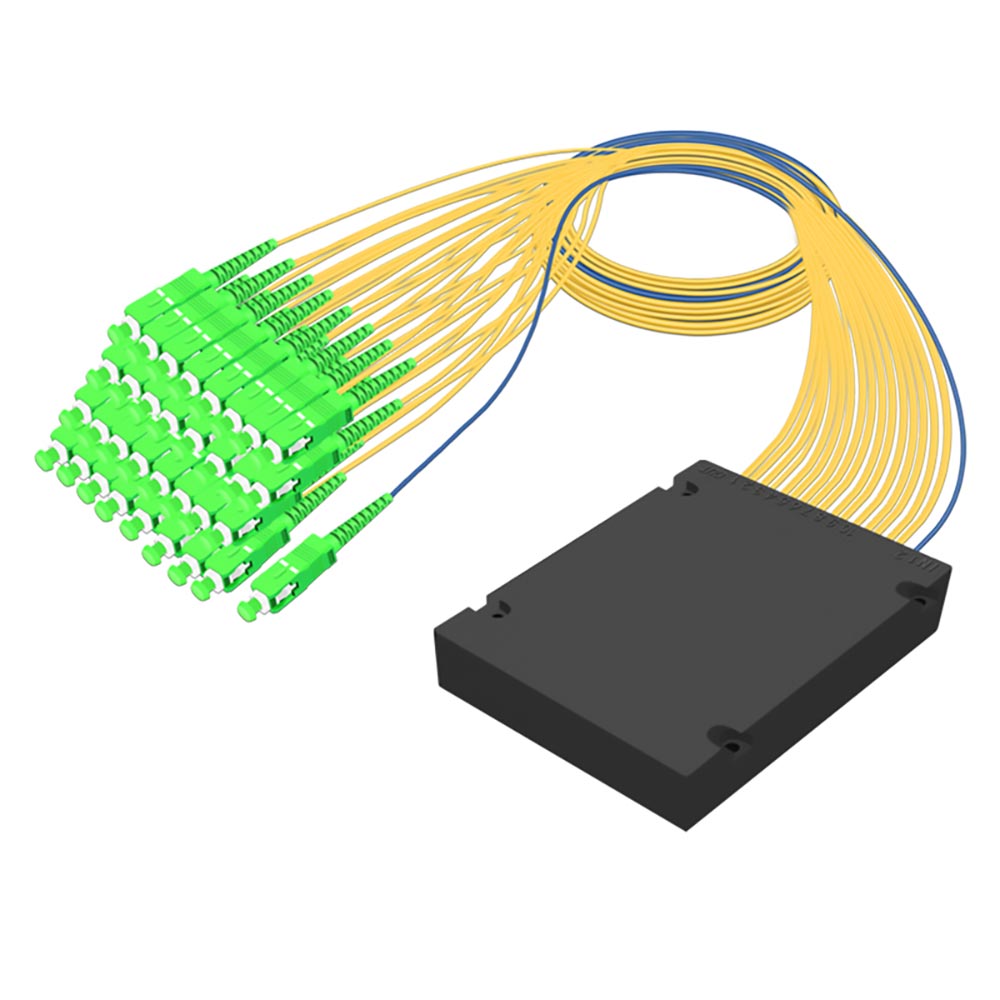

FTTH Cables
FTTH Cables
Prix habituel
$50.00 CAD
Prix habituel
Prix promotionnel
$50.00 CAD
Quantité
Impossible de charger la disponibilité du service de retrait
- Robust ABS housing: A durable ABS plastic housing ensures optimal protection of optical components and cables, as well as rock-solid reliability in various environments.
- Multiple distribution configurations: offered in 1×N or 2×N distribution in configurations from 1×2 to 1×64 to meet router requirements.
- High optical performance: Low insertion loss of ≤17 dB, low polarization dependent loss (PDL) of ≤0.3 dB, high return loss of ≥50 dB for efficient optical signal transmission and division.
- Excellent signal distribution: Uniform signal loss from one channel to another of ≤1.6 dB to balance the optical power sent to each output port.
- Wide operating wavelength range: The operating wavelength range of 1260 nm to 1650 nm allows it to support different types of optical communication systems FTTH, GPON and PON.
- Overall stability: High and advanced environmental tolerance allows for a typical operating temperature range of -40°C to 85°C to meet Telcordia GR-1209 and GR-1221 specifications for long-term reliability.
- Easy installation: Time-saving design with clearly marked input/output ports and small dimensions for flexible installation in fiber distribution boxes, cabinets, or rack units.
- Standard SC/APC connector: Factory assembled using G.657A1 single-mode fibers with SC/APC connectors, with low back reflection and highly efficient optical cleaning for use with existing fiber optic network infrastructure.
- Versatile application: Ideal for FTTH, FTTX, PON or any other passive optical network application for optical management.
