Adapters

$0.29 CAD

Promotion Épuisé

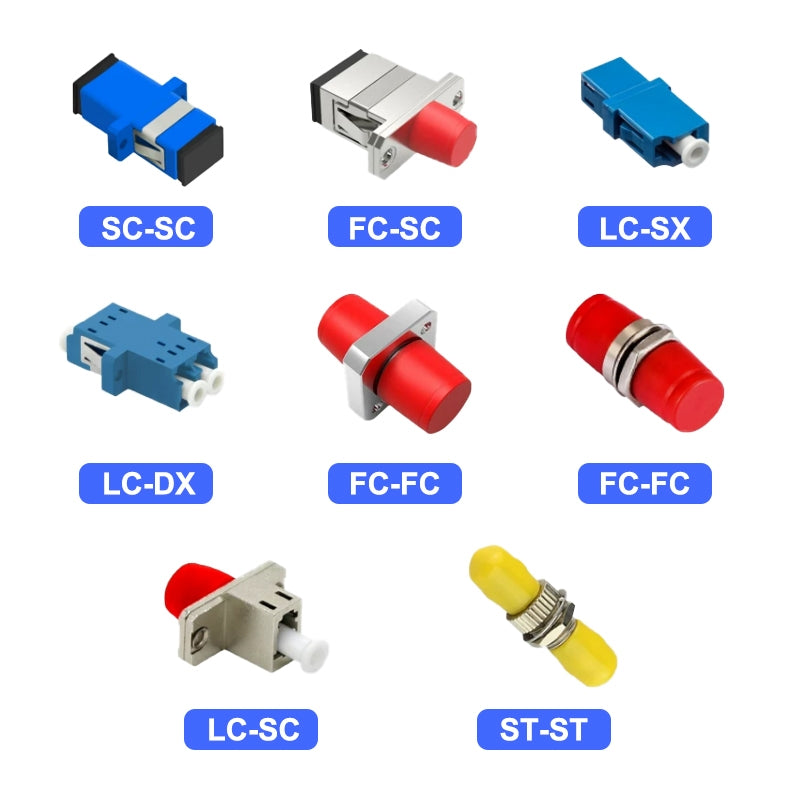

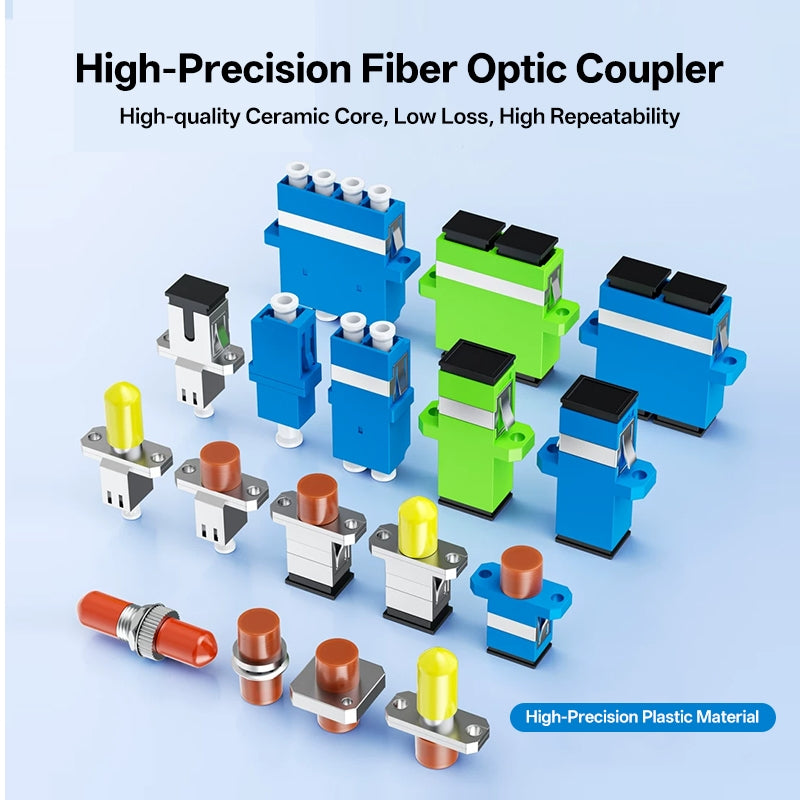

Various connection methods use LC simplex, duplex and quadruplex adapters, as well as SC and FC simplex/duplex adapters with SC, LC and FC connectors.
Universal mechanical housing between OM3 and OM4, single-mode and multi-mode adapters.

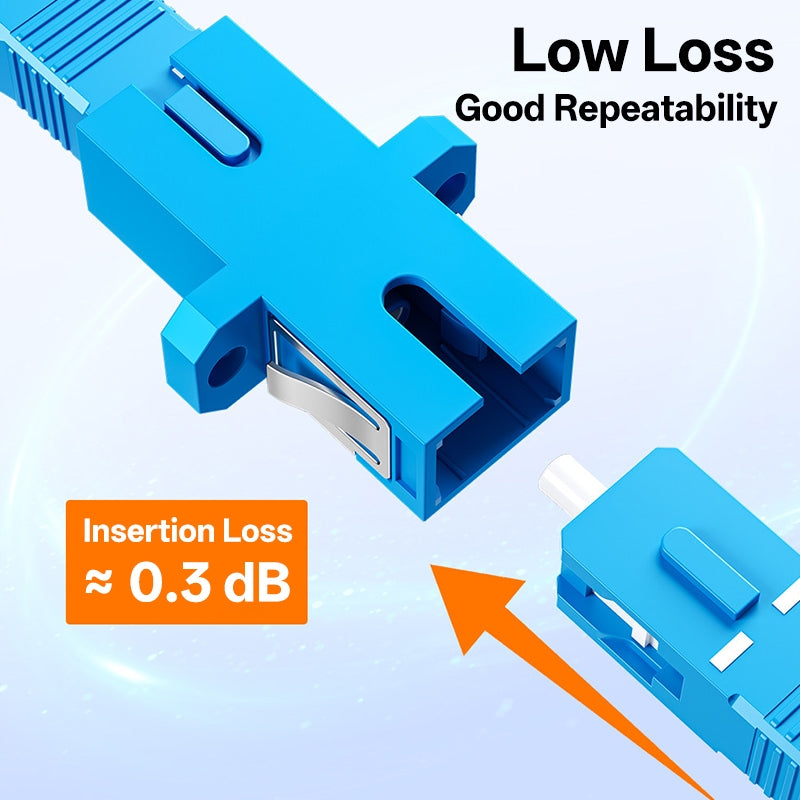

An ultra-low insertion loss (≤0.2 dB for SC and ≤0.3 dB for LC) preserves signal integrity.

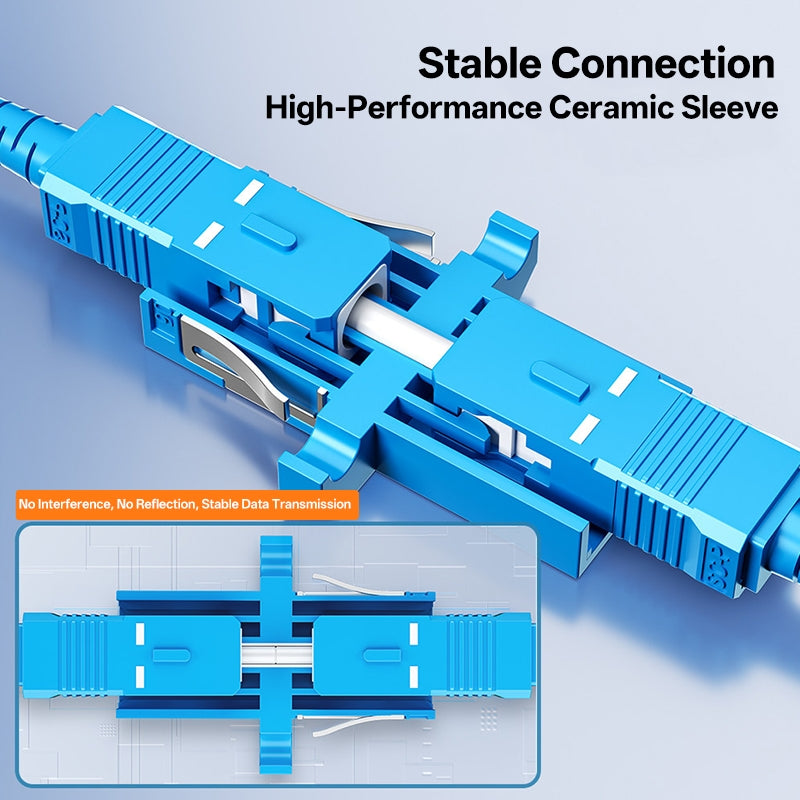

The precision ceramic sleeves offer more than 1000 coupling cycles with a repeatability greater than 0.20 dB.
Robust cases, either made of high-density engineering plastic or zinc alloy.
Among its special features are SC hinged/side hinged covers and LC high/low flanges for panels.
The wide operating temperature range (-40°C to +80°C) meets the requirements of telecommunications rooms and cabinets.
Supports high return loss (≥50 dB) for non-reflective signals (single mode 1310 nm and 1550 nm).
